Modular System 6 Neoprene Air Casters 240.000kg

Product description

Modular System • 6 Neoprene Air Casters • Capacity 240.000 kg • 4 bar

Type: MS6-NM125H

Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available
Price not available

When you create an account you will first be assessed.

However, it is possible to request a quotation for one or more products.

Description

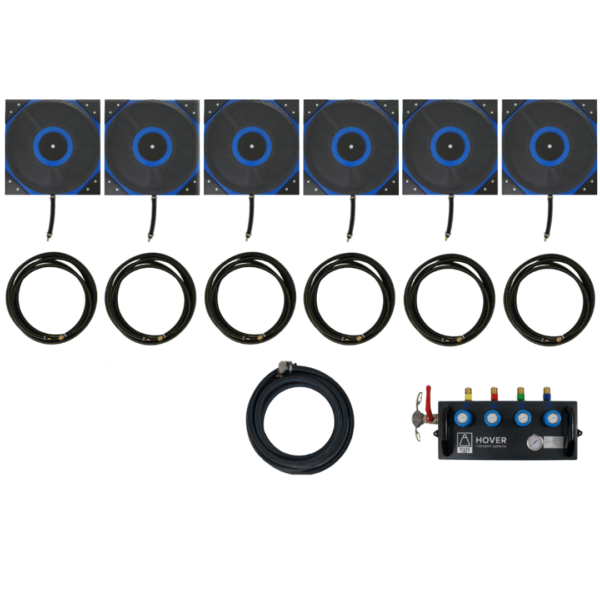

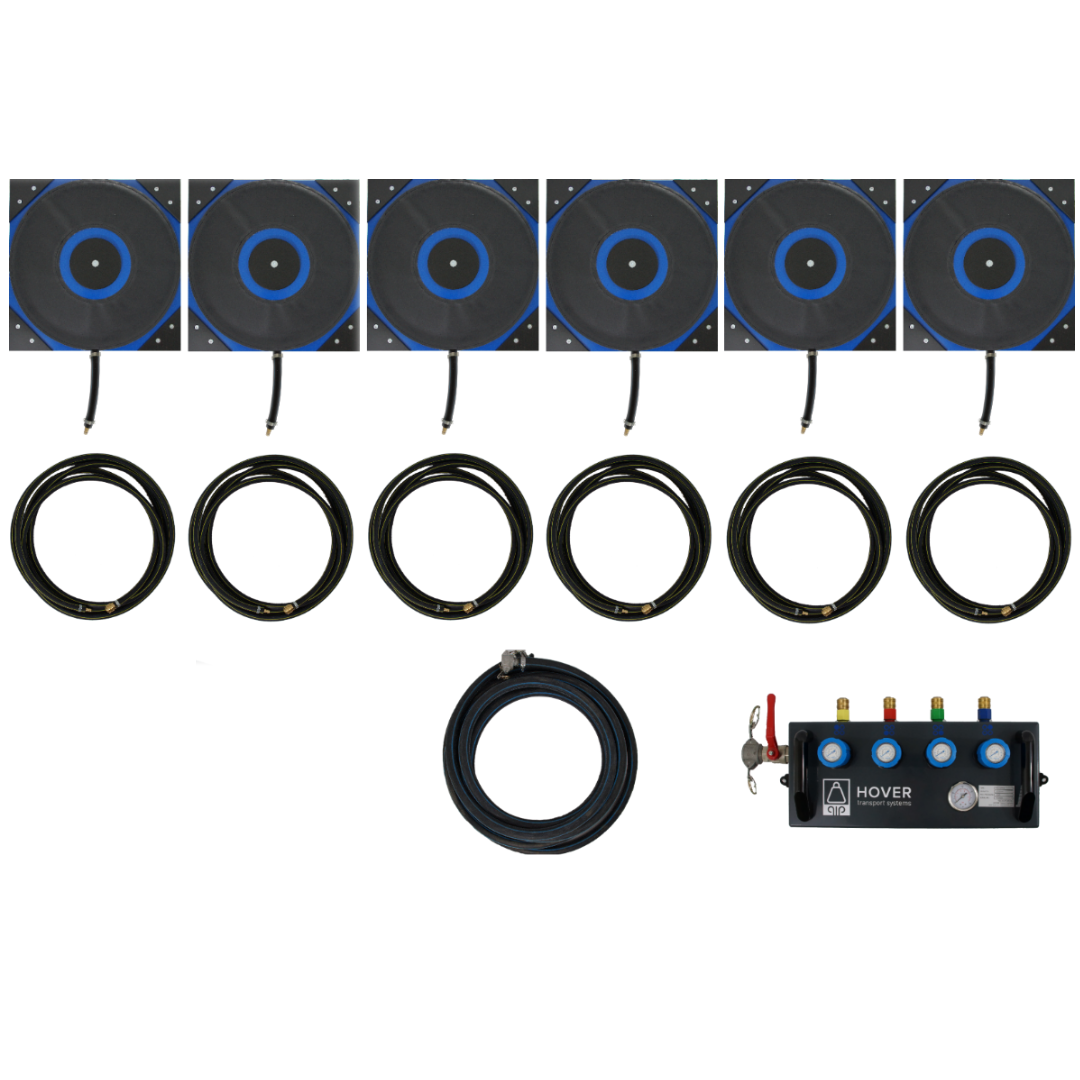

This is a modular air caster system with 6 neoprene air casters and a total capacity of 240.000 kg at 4 bar pressure. Minimum capacity is about 96.000 kg.

It consists of:

  • 6 air casters with the dimensions 125 x 125 x 1,1cm that have a maximum capacity of 40.000 kg
  • 6 power plates with the dimensions 125 x 125 x 5cm that provide the air supply with 1″ quick couplings
  • 6 air caster hoses of 1″ with 1″ quick couplings in either 2×3 with 4×5 m/ 2×5 with 4x7m/ 2×7 with 4×10 m length
  • 1 air supply hose of 2″ with 1″ camlock couplings and safety pins in either 10 m/ 20m/ 40m length
  • 1 air control unit with 6 air regulators (with embedded manometers), an inlet 2″ camlock coupling and 6 outlet 1″ quick couplings, colour coded
  • Optionally you can order a transport case to easily store and move your system

When you cannot select the specific type you need, please contact us and we can make you a proposal.

More details can be found in the specification sheet in the Downloads section.

Specifications

Maximum capacity

Air Casters

6 x Neoprene Air Caster 125 x 125 x 1,1cm – 40.000kg

Air Caster pressure

Air Consumption

7.200 l/min

air-inlet
